2 Circuit General Purpose Electronic Thermostat w/ GFEP
2 Circuit General Purpose Electronic Thermostat w/ GFEP

Our Price: $1,356.28


Product Code: 2PHTC
Qty:

Description Technical Information Manufacturer's Warranty

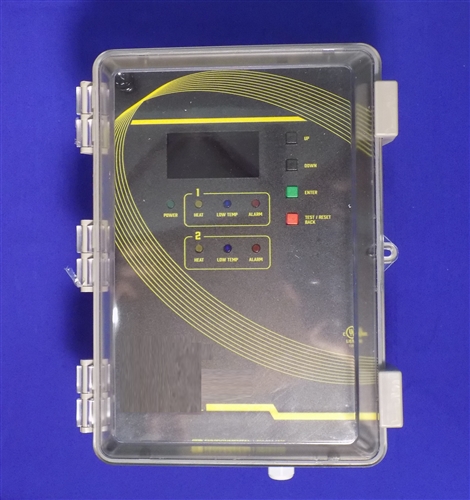

2 Circuit General Purpose Heat-Trace Control with GFEP (Ground Fault Equipment Protection) - Cost sensitive controller with adjustable setpoints for freeze protection, hot water maintenance, and other temperature monitoring and control applications on two independent heater control channels. This controller can be utilized for either ambient or pipe sensing systems.

  • Automatically selected operating voltages of 100-277Vac
  • 2 external temperature sensors included for temperature range of -40°F to 230°F (-40°C to 110°C)
  • Setpoint range from -99.9°F to 999°F (-73.3°C to 537.7°C)
  • Built-in 30 mA GFEP digitally filtered to minimize false tripping
  • Adjustable alarms available for excess ground fault current, load current, and temperature
  • Controls two resistive loads up to 30A each
  • NEMA 4X, rugged, non-metallic enclosure

Approvals/Classifications:

  • UL & CSA Certifications for Nonhazardous Locations - operating temperature range of -40°F to 122°F (-40°C to 50°C)
